- Designed for underground
- Radio Remote Control
- Ideal for overhead stringing
Features:
- Used for overhead stringing and underground cable hauling
- Negative self acting hydraulic brake
- Bull wheels made of wear proof thermally and chemically treated steel
- Hydraulic dynamometer with set point and automatic control of maximum pull
- Built in reel winder with automatic level wind and special reel for 500m of 8mm Ø Rope
- Closed hydraulic circuit for stepless speed variation in both rotating directions
- Single rope stringing
- Cable guide pivot pulley suitable for work in any underground situation
- 12VDC electrical system
- Machine Weight 500kg excluding fluids (Puller Only)
| Performance | |
|---|---|
| Max. pull | 15kN |
| Max speed at pull | 0.7km/hr |
| Max. speed | 3.6km/hr |
| Pull at max. speed | 4kN |
| Engine output | 13kW |
| Bull wheel dia. | 200mm |
| Rope dia. | 8mm |
Options

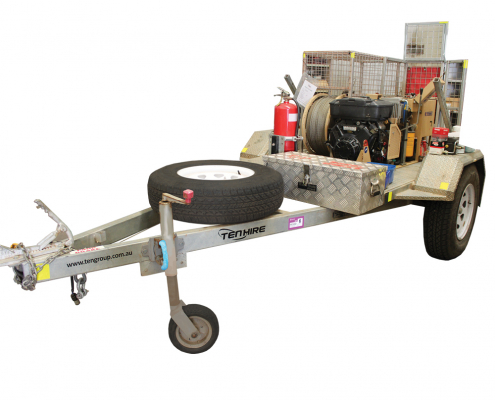

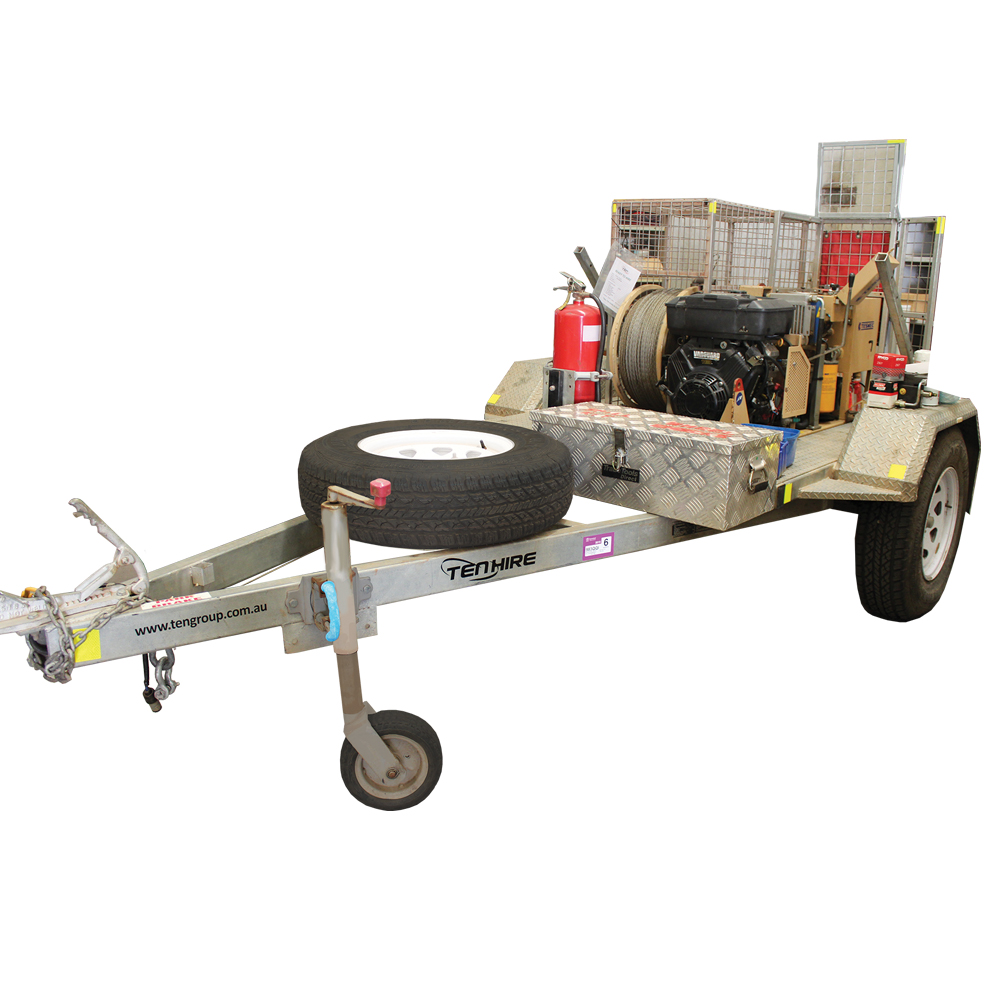

- Standard Road Trailer
- Skid
- 8mm Braided Rope
